Titanium Heat Exchanger
The plate heat exchangers produced by the company are widely used in the fields of shipping, chemical industry, electric power, seawater desalination and HVAC.
Belongs to category：
keyword： Titanium Heat Exchanger
Share to：
Product Description

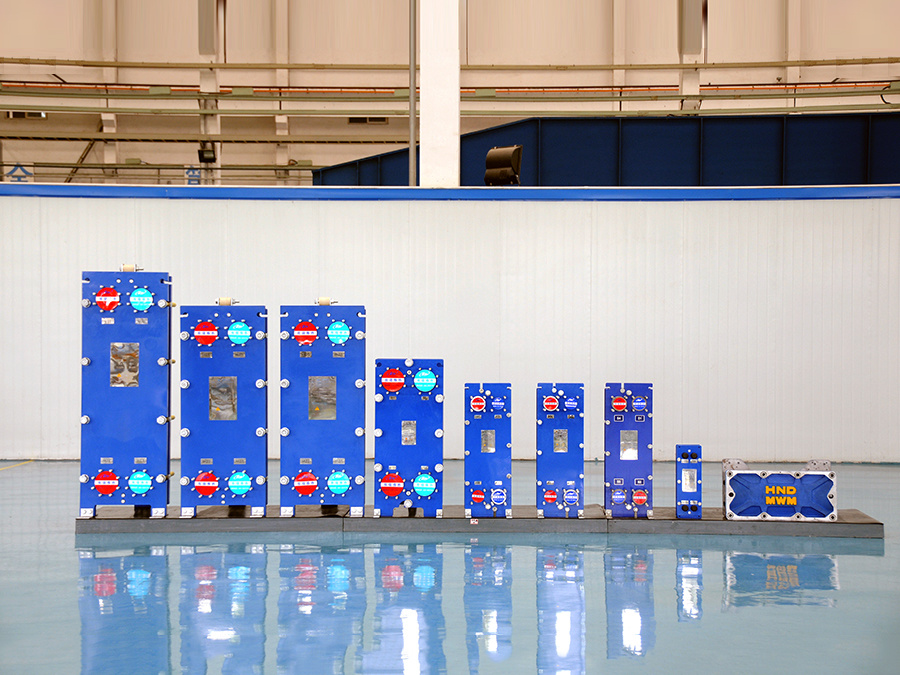

The company is equipped with world-class hydraulic presses and CNC shearing machines, capable of producing plate heat exchangers ranging from DN25 to DN400. Our plate heat exchangers are widely used in marine vessels, chemical processing, power generation, seawater desalination, and HVAC systems.
Plate material table | |
Material | Suitable fluids |
Stainless steel (304, 316, 316L, etc.) | Purified water, river water, edible oil, mineral oil |
Titanium and titanium palladium | Seawater, salt water, salt compounds |
20Cr, 18Ni, 254SMO | Dilute sulfuric acid, dilute salt compound aqueous solution |
Nickel | High temperature, high concentration caustic soda |
HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
Stone poison | Hydrochloric acid, medium concentration sulfuric acid, phosphoric acid, fluoric acid |
Sealing gasket material table | ||
Material name | Maximum operating temperature ℃ | Applicable media |
Nitrile rubber NBR | 130 | Food industry, hydrocarbons, mineral oils, fatty oils, inorganic acids and alkalis |
Butyl rubber RCB | 140 | Organic acids, inorganic acids, lye |
Ethylene propylene rubber EPDM | 150(high temperature 180) | Water, steam, oxidizing media, acids, alkaline ketone solutions, detergents |
Fluororubber Viton | 180 | Concentrated acids, organic solvents, alcohol |
Silicone rubber | 175 | Food industry, oils, fats, alcohol |
Hypalon CSM | 100 | Antioxidants, oleic acid |
Technical specifications | P25 | P60 | P70 | P100 | P125 | P150 | P200 | P250 | P300 | P350 | P400 |
Nominal diameter mm | 25 | 60 | 70 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
Maximum flow rate m/h | 15 | 45 | 45 | 170 | 260 | 390 | 700 | 900 | 1400 | 2100 | 2700 |
Maximum test pressure MPa | 3 | 3 | 3 | 3 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Maximum height mm | 500 | 920 | 720 | 1085 | 1350 | 1940 | 2260 | 2900 | 3100 | 3400 | 4000 |
Maximum length mm | 400 | 600 | 500 | 900 | 2370 | 3290 | 4030 | 3400 | 5220 | 6130 | 6550 |
Plate thickness mm | 0.4-0.7 | ||||||||||
Plate material | 304, 316L, 926 alloy, SMO254, nickel alloy, titanium alloy, Hastelloy | ||||||||||
Seal ring material | NBR、EPDM、FPM | ||||||||||
Features & Configurations of Heat Exchange Units：
1 、 Advanced technology, aesthetic design, superior performance, and reliable quality
2 、Optimized design, rational layout, compact structure, small footprint, and reduced infrastructure costs
3 、 Flexible control modes:
● "Quality" Regulation Mode: Annual thermal energy savings up to 30%-40%.
● "Quality-Quantity" Regulation Mode: Annual comprehensive energy savings (heat + electricity) up to 30%-40%, minimizing operational costs.
4 、 Automatic water replenishment, pressure relief, anti-scaling, and impurity removal
5 、 Easy installation: Fully assembled prior to delivery; simply connect the inlet (steam/water) and power supply to start operation.
6 、 High intelligence and automation levels:
● On-site monitoring via LCD display.
● Remote monitoring and centralized management of multiple units; supports unmanned operation.
7 、Premium components: Pumps, pipes, and valves sourced from top domestic or international brands, precision-engineered for extended lifespan.
8 、 Standard configurations include:
● Heat exchanger, variable-frequency water replenishment system, intelligent temperature control unit, circulation pump.
● Optional: Variable-frequency electronic descaling unit, circulating water filter, smart control cabinet.
● Sensors, instruments, valves, base frame, piping, etc.Configurations can be customized based on user requirements.
"HEAT+" Thermal Energy Monitoring Platform & District Pipe Network Energy-Saving System
Sunrui Heat Exchange offers integrated energy-saving solutions for industrial users, combining heat exchange units, district pipe network balance control systems, and data acquisition/remote monitoring platforms. This addresses challenges such as:
● Mismatched secondary network balancing devices
● Inaccurate data collection and signal interference
● Hydraulic imbalances and pipeline leakage
Smart features:
● Automatic temperature adjustment based on weather conditions
● Customizable control strategies to reduce manual intervention and shorten commissioning time
Data integration:
● Autonomous communication network for real-time data collection and transmission from heat exchange units and secondary network devices
"HEAT+" Platform:
● Centralized monitoring and control of primary/secondary networks, heat exchange stations, and end-users
● Ensures full-network heating quality management
All configurations can be flexibly tailored to meet specific user needs.
